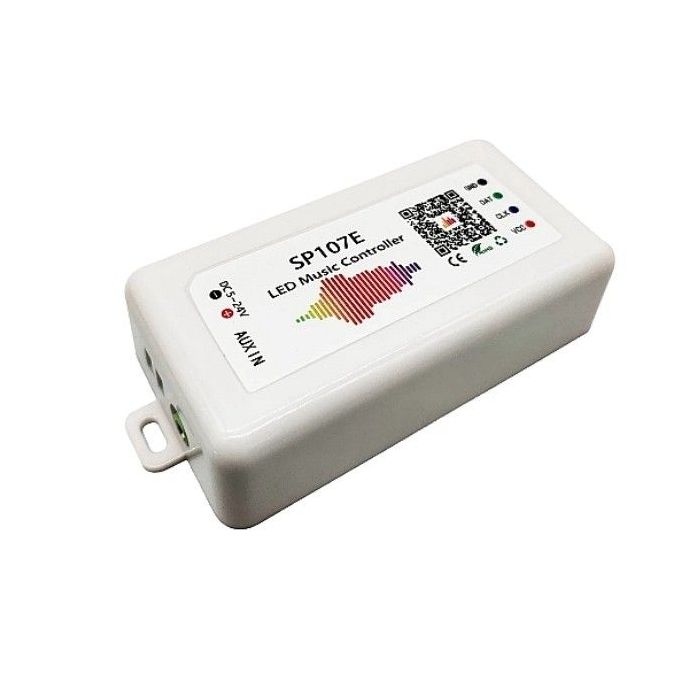

SP107E LED Controller Bluetooth Pixel IC SPI Music by Phone APP

$14.48
In stock
SKU
SP107E LED Controller Bluetooth Pixel IC SPI Music by Phone APP

SP107E LED Controller Bluetooth Pixel IC SPI Music by Phone APP  is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Specifications:

Working temperature : -20℃~60℃

Working Voltage : DC5V~24V

Working Current : 18mA~45mA

Remote distance : 20 Meters

Product size : 85mm*45mm*22mm

Product weight : 40g

Certificates : CE, RoHS

Features:

1. Long distance APP remote control via Blutooth

2. Support almost every kind of one-wire or two-wires LED driver IC

3. Support setting pixel number and segment number, support up to 960 pixels

4. With 18 kinds of LED strip music effects, 30 kinds of LED matrix music effects

and 180 kinds of non-music effects

5. DC5V~24V wide range working voltage, reverse power supply input protection

6. User setting saving

Download and install the APP:

Both IOS version and Android OS version are available. (hardware should support Bluetooth)

•Requires IOS version 10.0 or later

•Requires Android OS version 4.4 or later

•Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP

Instructions:

APP Operatings:

1.Make sure you have turn on Bluetooth on your phone

2.Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller

3.Select RGB order and IC type

4.Adjust pixel number

5.Press ENTER

Audio Input:

There are two ways to input the audio signal on SP107E, AUX IN and Build-IN

microphone:

•AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or headset), controller will automatically switch into AUX input mode

•MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode.

Package Included:

1 Set of LED Controller

SP107E_LED_Controller_Bluetooth_4
SP107E_LED_Controller_Bluetooth_5
SP107E_LED_Controller_Bluetooth_6
SP107E_LED_Controller_Bluetooth_7
SP107E_LED_Controller_Bluetooth_8
SP107E_LED_Controller_Bluetooth_9
SP107E_LED_Controller_Bluetooth_10

CE and RoHS approved
