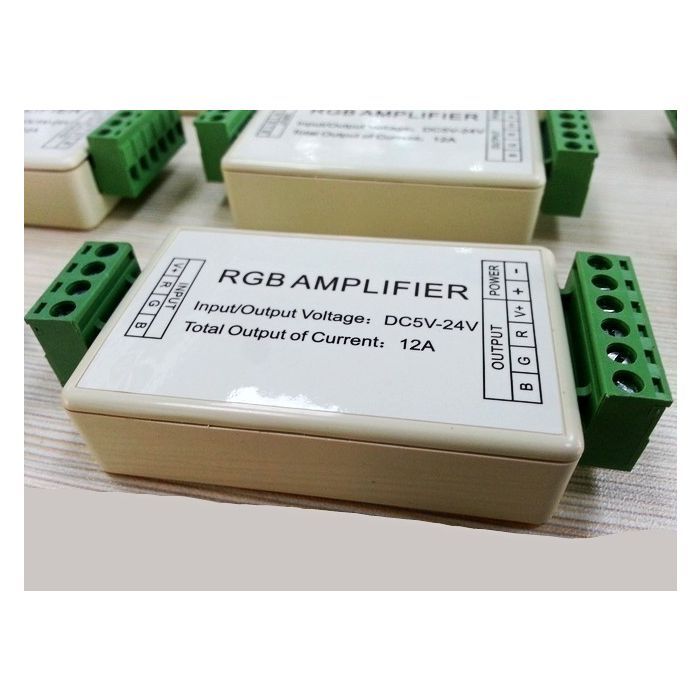

12A Mini RGB Amplifier RGB LED Booster DC 5V 12V 24V is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
This LED amplifier is a constant voltage power repeater and works with DC 5V to DC 24V LED strips and other devices.
It is suitable for all of our RGB controllers to expand power output. Input: Screw terminals for easy connection to our male barrel plug or stripped power supply wires. Output: Screw terminals for easy connection to our RGB Flexible LED Strips or control cable. You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip). Supports PWM (Pulse-Width-Modulation) control for 0-100% Dimming and Full Color Control. You can stack amplifiers (2x repeaters connected = 8A/Ch) (4x repeaters connected = 16A/Ch) Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller.
Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output.
Suggested Uses
Simply connect the output of one of our RGB Controllers (DMX, IR,
or RF) to the input of this controller. Then, connect a power supply
to the (+) and (-) and connect your RGB LED Strips to the Output.
Led Color
N/A
Mounting Options
Other
Voltage
DC 5V to 24V
Wattage
4A/Ch
Output Power
4A/Ch - 48W/Ch
Number Of Chanels
3
Rated Amps / Ch
4A/Ch
Power Input: Connection Type, Voltage, Amperage
Screw Terminal
Output Connection Type
Screw Terminal
Can Power/Control (xx) Feet of strip
Up to 64' of RGB Flex Strip or 4A/Ch
Max Connected Strip Length From Each Power Connection
at full brightness (white) we recommend you only connect 2 rolls from
each power connection for accent lighting say about 25% you can connect
8x rolls end to end
Controllable By
Any of our Controllers
Suggested Accessories
Male Power Connector for connecting to power supplies
Common Anode is default for this item, if you need common cathode style,
