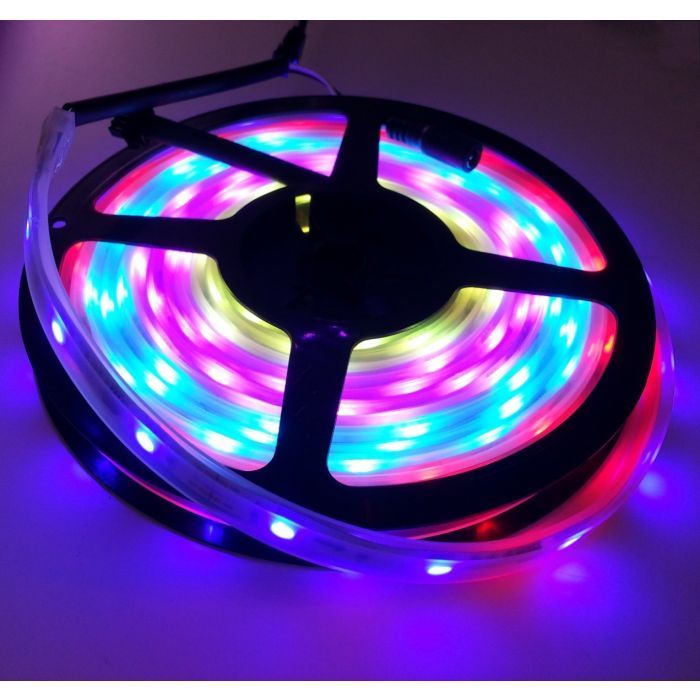

This 1903 RGB LED Strip is a wonderful dream chasing color LED strip light with 133 modes and brilliant color,
which would work smoothly and properly. With 1903 IC inside, it can make sure several light strips work synchronously.
Long service life, more than 50,000 hours. It is shockproof, waterproof and dust-proof. It is widely used for home decoration,
hotels, clubs, bar, shopping malls, show exhibition, KTV, holiday, event, and it is also applied in backlighting, concealed lighting,
channel letter lighting, automobile and bicycle decoration, etc.
These are high-speed serial super-bright RGB LED Strips! They use excellent, high-speed USC1903 serial controller chips to
implement 8-bit RGB control of the LEDs with a clock line, so the entire interface on these strips looks like 12 volts, Ground
and Data. The LEDs are on 1.31″ centers so 30 LED’s per meter. One chip controls three LEDs (which are in series) so there
are 10 chips per meter.
Our UCS1903 strips are waterproofed with a soft silicone material. If you cut the 5 meter roll to size, you will need to reseal
the ends. Silicone, hot glue, or any non-conductive epoxy should work for this job.
Note: These strips do not have a self-adhesive backing.
Model: SMD 5050 RGB 1903 intelligent strip
Working voltage: DC 12V
Current: 3A
LED quantity: 9 LEDs per foot; (30 LEDs per Meter);
IC quantity: 10 ICs Per Meter
Wave length(NM): Red-650nm, G-520nm,B-460nm
Power(W/M): 7.2 W/M, 36W for 5 Meters (16.4Ft)
Signal: 1903 IC chip
View angle: 120 degrees
Life span: more than 50000hrs
Dimension: 500cm*12cm*2.2mm
Protection rate: IP67 Silicon Tube waterproof
Package Included:
1 Roll of 16.4 Feet (5 Meters ) DC 12V UCS1903 IC Addressable Pixel Light 30LEDs/M 10ICs/M RGB Programmable Waterproof LED Strip
The following photo is the photo of 133 changing modes RF controller which would easily control 1903 led strips to light at a lot
of colors and patterns:
CE and RoHS approved
