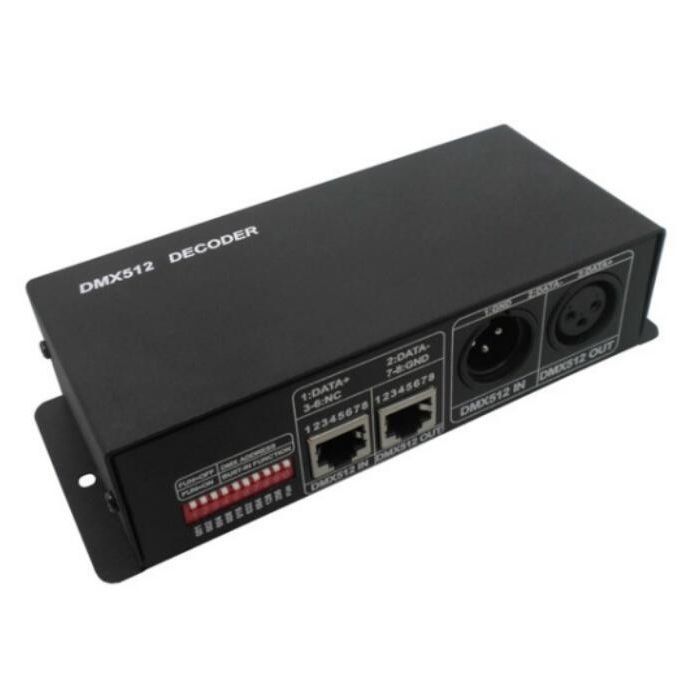

4 Channel DMX 512 LED Decoder DC 12-24V LN-DMXTCON-4CH-LV

$17.13
In stock
SKU
4 Channel DMX 512 LED Decoder DC 12-24V LN-DMXTCON-4CH-LV

4 Channel DMX 512 LED Decoder DC 12-24V LN-DMXTCON-4CH-LV is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Summarization

DMX Decoer adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and

transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to

achieve dimming or various changes in procedures.

Technical Parameters

Working temperature: -20-60 ℃

Supply voltage: DC12~24V

Output: 4 channel

External dimension: L165*W65*H40(mm)

Packing size: L185*W85*H60(mm)

Net weight: 310g

Gross weight: 389.5g

Static power consumption: <1W

Output current: each channel 4A

Output power: 12V:<192W,  24V:<384W

The controller output frequency: 980 Hz

Package Content:

1 Piece of LED Controller

1 Piece of User's manual

DMX_Controller_Series_LN_DMXTCON_4CH_LV_1

DMX_Controller_Series_LN_DMXTCON_4CH_LV_2

DMX_Controller_Series_LN_DMXTCON_4CH_LV_3

DMX_Controller_Series_LN_DMXTCON_4CH_LV_4

DMX_Controller_Series_LN_DMXTCON_4CH_LV_5

DMX_Controller_Series_LN_DMXTCON_4CH_LV_6

DMX_Controller_Series_LN_DMXTCON_4CH_LV_7



  •

    DMX_Controller_Series_LN_DMXTCON_4CH_LV_8

    DMX_Controller_Series_LN_DMXTCON_4CH_LV_9

    DMX_Controller_Series_LN_DMXTCON_4CH_LV_10

    DMX_Controller_Series_LN_DMXTCON_4CH_LV_11

    DMX_Controller_Series_LN_DMXTCON_4CH_LV_12

CE and RoHS approved
