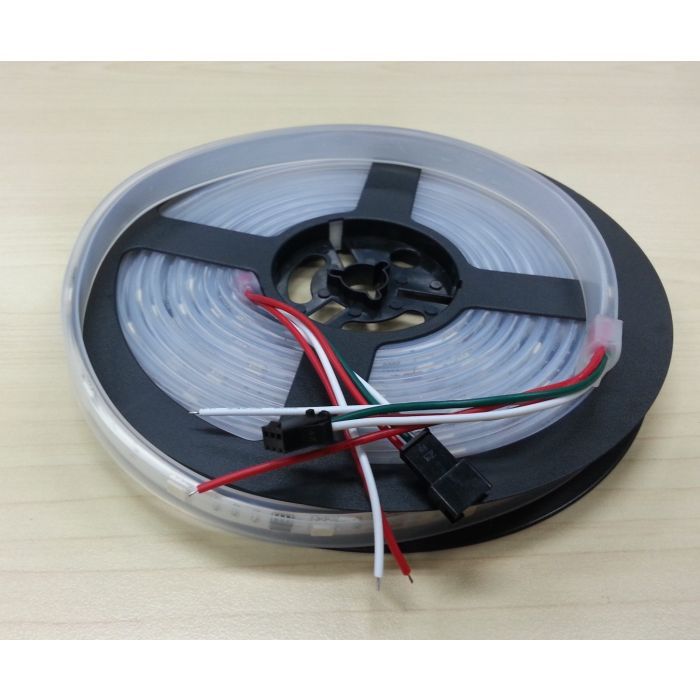

We supply high quality 5 Meters DC12V WS2811 RGB LED Strip 10pcs ICs and 30pcs RGB LEDs Each Meter to meet
your lighting project needs.
Each Meter has 30pcs 5050 RGB LED With 10paths driver IC inside to drive 10 pixels,Connecting with the controller
can get more than 133 programs which are various color style changing and patterning.
Working voltage: DC12V
Current: 3.2A
LED Quantity: 30 leds Per Meter
IC Chip: WS2811 256 gray scalse
IC Quantity: 10pcs WS2811 IC per Meter
PCB Background Color: Pls choose
Wave length(NM):R-650mcd, G-520mcd,B-460mcd
Power(W/M):7.68W/M
Signal: WS2811 chip
View angle:120 degree
Life span:no less than 50000hrs
Dimension:Around 1000*12*2.2mm The strip's original width is 10MM, With the cilicon tube, the width in total will be 12MM
Packaging:5Meters/reel in antistatic bag
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package Included:
1 Roll of (16.4 Feet) 5 Meters DC 12V WS2811 RGB LED Strip addressable pixel lights
30LEDs/Meter 10ICs/Meter
It is very easy to set up a 2811 LED strip lighting, just use this HC008 Controller (The same as the one at the video
and following photos) or the SD card controller (The SD Card controller would enable you to showing DIY Digital
Message and Patterns and Logos).
For use the HC008 Controller , just need to make sure use the controller to offer the signal and use the power supply
to power the controller and the led strip, then you would start the amazing lights as you want:
CE and RoHS approved
