If you want to run a lot of digital strips / digital modules then this Digital LED 8 Channel SPI Amplifier will boost the signal.
This can also be used as a Splitter to allow multiple strips to connect to the same controller without loosing single strength.
Each time add one SPI Signal Amplifier , it could output 8 groups of signals, achieve the effection of multi-group lights
changing synchronously. Theoretically, This SPI Signal Amplifier could be connected immensely.
Have you run out of plugs for your dream-color lighting displays? Designed for use with LED strip light controllers, this
8 channel SPI signal amplifier allows you to control up to 8 slave devices through a single amplifier. Featuring 8, 5-pin
SPI outputs controlled by a single input, this unit will truly give you the freedom you desire in your LED lighting displays!
Sturdy mounting brackets make this unit perfect for use at home, in theaters and even in your car!
Features:
Control up to 8 different signals from a single amplifier
Sturdy mounting brackets prevent transmission breaks
Solid, thermal resistant design ensures longevity
Technical parameters
Working temperature: -20-60℃
Working voltage: DC5V
Input Signal: 5-pin SPI
Output Signal: 8 SPI signal
Connection mode: Common Anode
External dimension: L113 Χ W49 Χ H23mm
Gross weight: 145g
Static power consumption: <1W
Package Included:

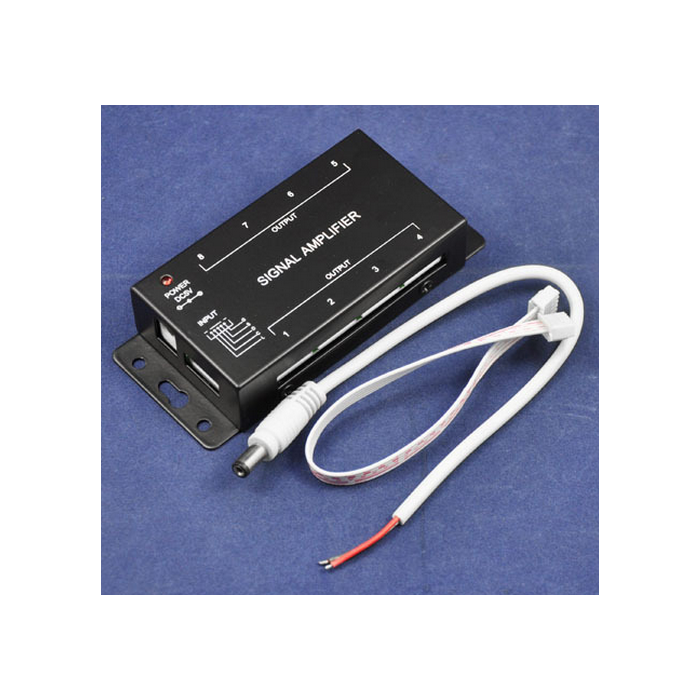

1 Piece of Digital LED 8 Channel SPI Amplifier Signal Splitter 5V DC
1 Piece of Input Power Connceting Wire
1 Piece of Input Signal Connceting Wire
CE and RoHS approved
