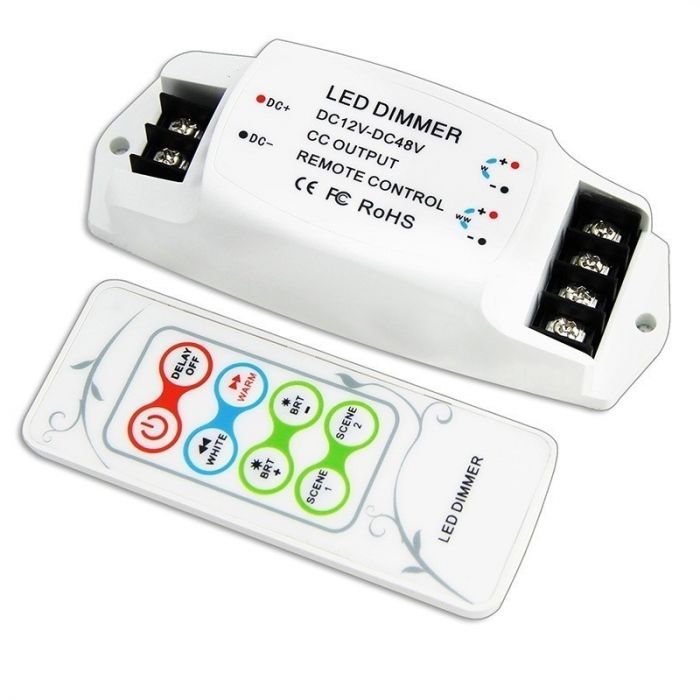

BC-313 Bincolor Led Controller PWM Color Temperature Remote Control

$22.12
In stock
SKU
BC-313 Bincolor Led Controller PWM Color Temperature

BC-313 Bincolor Led Controller PWM Color Temperature Remote Control is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Feature function:

Automatically adapt to LED light which works from DC12V-48V.

Real 0~100% brightness adjust, 4096 scale levels. Lamplight soft and stable,

2 channel outputs with Max 350mA or 700mA constant current.

Working with power repeater to expand power output unlimitedly.

2 DIY modes. Easy to replay your favorite settings

Small size, flexible to install.

Product parameter:

Product Model:BC-313-350

Input voltage:DC12V-48V

Max load current:350MA/CH*2

Driving LEDs/CH:1-12pcs 1W LED

Output signal:Constant current PWM

Dimming range:0-100%

Scale levels:4096 levels/CH x 2

Switch Dimension:L125xW45xH36(mm)

Weight (G.W):140g

Product Model:BC-313-700

Input voltage:DC12V-48V

Max load current:700MA/CH*2

Driving LEDs/CH:1-12pcs 3W LED

Output signal:Constant current PWM

Dimming range:0-100%

Scale levels:4096 levels/CH x 2

Switch Dimension:L125xW45xH36(mm)

Weight (G.W):140g

Remote Battery is not include

Note:Only connects with two different color temperature lights,can adjust the

color temperature.It can connect with power repeater series to extend power.

Remote Battery is not include

Package Included:

1 Piece of BC-313 Bincolor Led Controller PWM Color Temperature Remote Control


Bincolor_Controller_BC_313_1
Bincolor_Controller_BC_313_2
Bincolor_Controller_BC_313_3
Bincolor_Controller_BC_313_4
Bincolor_Controller_BC_313_5
Bincolor_Controller_BC_313_6
Bincolor_Controller_BC_313_7

CE and RoHS approved
