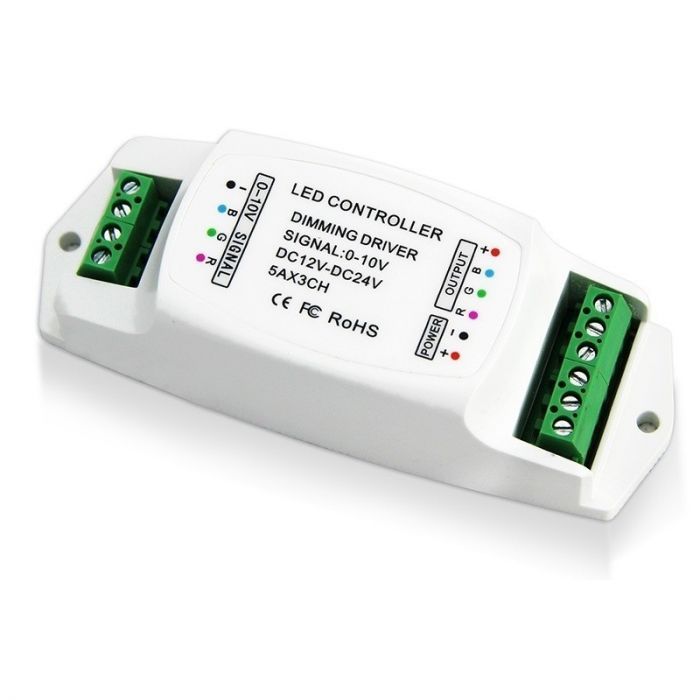

BC-330-5A LED Dimming Driver 5A*3CH 0-10V LED Driver

$20.23
In stock
SKU
BC-330-5A LED Dimming Driver 5A*3CH 0-10V LED Driver

BC-330-5A LED Dimming Driver 5A*3CH 0-10V LED Driver is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Feature function:

5A Model: Max output 5A*3CH,15A in total.

0 - 10V to PWM dimming signal conversion.

Optical isolation protection for input & output.

Compatible with many brand dimming systems.

Working voltage from DC12V~DC24V.

Product parameter:

Product Model:BC-330-5A

Input Voltage:DC12V-DC24V

Input Signal:0-10V analog dimming signal

Max Load Current:5A/CH×3CH

Max output power:180W(12V) / 360W(24V)

Output Signal:Constant voltage PWM

Product Dimension:L125×W45×H36(mm)

Package Size:L131×W49×H49(mm)

Gross Weight:90g

Package Content:

1 Piece of BC-330-5A LED Dimming Driver 5A*3CH 0-10V LED Driver

1 Piece of User's manual


Bincolor_Controller_BC_330_5A_1
Bincolor_Controller_BC_330_5A_2
Bincolor_Controller_BC_330_5A_3
Bincolor_Controller_BC_330_5A_4
Bincolor_Controller_BC_330_5A_5
Bincolor_Controller_BC_330_5A_6
Bincolor_Controller_BC_330_5A_7
Bincolor_Controller_BC_330_5A_8

CE and RoHS approved
