BC-331-DIN Bincolor Led Controller PWM Dimming Driver DC12-24V

Be the first to review this product
$38.54
In stock
SKU
BC-331-DIN Bincolor Led Controller PWM Dimming Driver DC12-24V
Add to Compare

BC-331-DIN Bincolor Led Controller PWM Dimming Driver DC12-24V is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

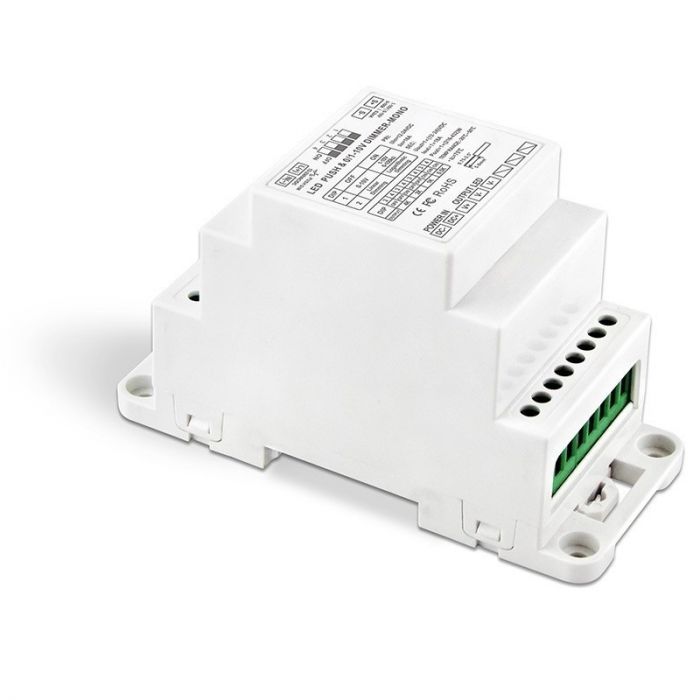

main product photo

Feature function:

Automatically adapts input voltage DC12V-24V.

1 output channel, Max output 18A.

PUSH DIM input voltage AC/DC12V-230V.

0/1-10V to PWM dimming signal conversion, linear or log.

Support linear dimming or logarithmic dimming.

Support optional output frequency 0.5K,1K,2K,4KHz.

Compatible with many brand dimming systems.

Multi units can be worked together or use our power repeaters to control more lamps.

Power loss memory function. Over current protection, short circuit protection.

The DIN rail style facilitates the installation of large-scale projects.

Product parameter:

Model: 0/1-10V Dimming Driver

Input Voltage: DC12V-24V

Max Current: 18A×1CH

Input Signal: 0/1-10V or PUSH DIM

Output Signal: Constant Voltage PWM

Max Output Power: 216W(12V)/432W(24V)

Output Frequency: 0.5K、1K、2K、4KHz selectable

Dimension: L111×W46×H66(mm)

Weight(G.W) :106g

Package Content:

1 Piece of BC-331-DIN Bincolor Led Controller PWM Dimming Driver DC12-24V

1 Piece of User's manual


Bincolor_Controller_BC_331_DIN_1
Bincolor_Controller_BC_331_DIN_2
Bincolor_Controller_BC_331_DIN_3
Bincolor_Controller_BC_331_DIN_4
Bincolor_Controller_BC_331_DIN_5
Bincolor_Controller_BC_331_DIN_6
Bincolor_Controller_BC_331_DIN_7
Bincolor_Controller_BC_331_DIN_8

CE and RoHS approved
