BC-824 Bincolor Led Controller 24 Channel DMX512/1990 Signal Decoder Driver 5V-24V

Be the first to review this product
$142.44
In stock
SKU
BC-824 Bincolor Led Controller 24 Channel DMX512/1990 Signal
Add to Compare

BC-824 Bincolor Led Controller 24 Channel DMX512/1990 Signal Decoder Driver 5V-24V is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

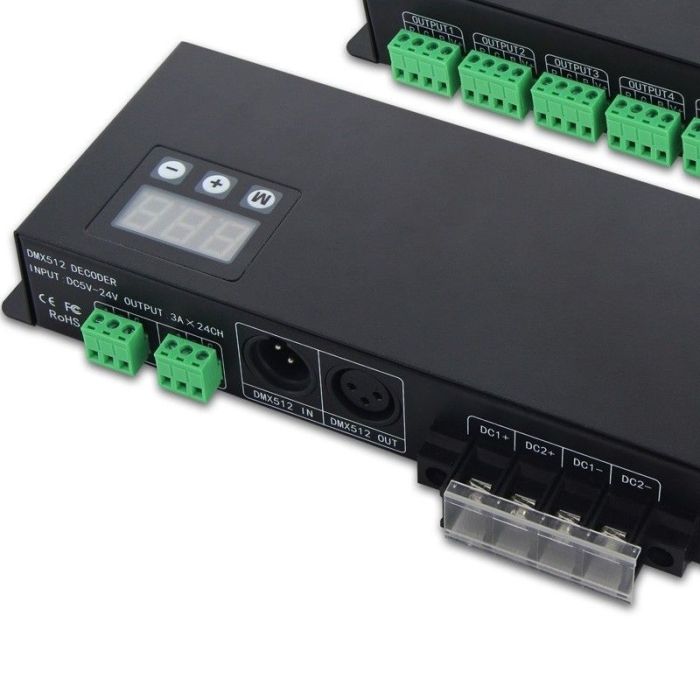

main product photo

BC-824

Feature function:

Universal standard DMX512 input protocol;  3-digital-display shows DMX address code.

Working voltage from DC5V-DC24V.

24 output channels,4096 grey steps per channel.

Multiple self-change modes, 10 speed levels .

Product parameter:

Input voltage: DC5V-24V

Max load current: 3A/CH×24

Max output power:  360W/860W/1720W(5V/12V/24V )

Output Scale level:  4096 levels

Input signal: DMX512/1990

Output DMX Channel: 24Ch CV PWM

working temperature:  -30℃-65℃

Dimension:  L260×W110×H40(mm)

Package Size:  L270×W130×H45(mm)

Weight (G.W): 920g

Notice1)2)3):

The Decoder should connect with two power supplies,

The 1 st power supply support Output 5-8,the 2nd power supply support 1-4;

The two power input can share the same umit power supply when the power is sufficient.

Package Content:

1 Piece of BC-824 Bincolor Led Controller 24 Channel DMX512/1990 Signal Decoder Driver 5V-24V

1 Piece of User's manual

Bincolor_Controller_BC_824_1
Bincolor_Controller_BC_824_2
Bincolor_Controller_BC_824_3
Bincolor_Controller_BC_824_4
Bincolor_Controller_BC_824_5
Bincolor_Controller_BC_824_6
Bincolor_Controller_BC_824_7
Bincolor_Controller_BC_824_8

CE and RoHS approved
