BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

Be the first to review this product
$35.17
In stock
SKU
BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail
Add to Compare

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

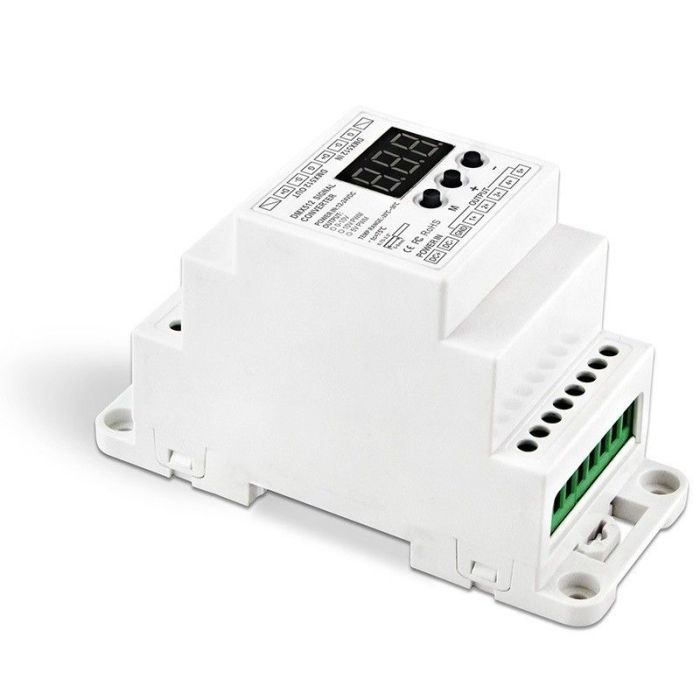

main product photo

Welcome to use the Din Rail DMX512 to 0-10V converter, which adopted advanced micro-computer

control technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V、5V signal. 1-5

output channels can be selected, and each channel can be controlled independently.

Specifications:

Model:  DMX512 Signal Converter(BC-835-010V-DIN)

Input voltage: DC12V-DC24V

Input Signal: DMX512/1990

Output Signal: 5CH 0-10V signal

Max output power :5×20mA

DMX512 socket : Terminal Block

Dimension:  L111×W46×H66(mm)

Weight (G.W) : 110g



Model:DMX512 Signal Converter(BC-835-PWM5V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 5V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W) : 110g




Model:DMX512 Signal Converter(BC-835-PWM10V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 10V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

 Weight (G.W):110g

Package Content:

1 Piece of BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

1 Piece of User's manual









CE and RoHS approved
