Bincolor BC-802 Led Controller DMX512 to SPI TTL Convertor Decoder

Be the first to review this product

$33.72

In stock

SKU

Bincolor BC-802 Led Controller DMX512 to SPI TTL Convertor

Product Model

1 Piece of BC-802-3001

1 Piece of BC-802-8806

1 Piece of BC-802-2801

1 Piece of BC-802-9813

1 Piece of BC-802-1809

1 Piece of BC-802-6803

Qty

Bincolor BC-802 Led Controller DMX512 to SPI TTL Convertor Decoder is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

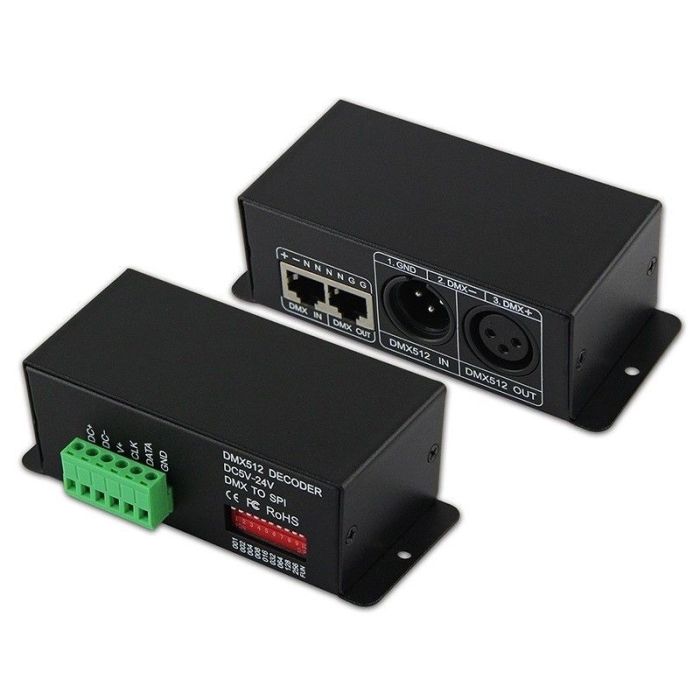

main product photo

Skip to the beginning of the images gallery

Feature function:

1.In put standard DMX512 protocol，Address can be set by DIP.

2.Automatically adapt input voltage DC12V-24V.

3.Self-Changing Mode exist.

4.Output TTL Signal.

5.Power loss memory function.

Product Paramete:

model:BC-802-6803

Input voltage:DC5V～DC24V

Input signal:DMX512 /1990

Output signal:LPD6803, LPD1101, D705, UCS6909, UCS6912

Decoder channels:512 DMX CH

Grey Scale:32 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

modeL:BC-802-1809

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:TM1803, TM1804,TM1809,TM1812,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912,WS2811

Decoderchannels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

workingtemperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-9813

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:P9813

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-2801

Input voltage:DC5V～DC24V

Input signal: DMX512/1990

Output signal:WS2801, WS2803

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket: XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-8806

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:LPD8803、LPD8806

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight(G.W):320g

model:BC-802-3001

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:TLS3001, TLS3002

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

Package Content:

1 Piece of Bincolor BC-802 Led Controller DMX512 to SPI TTL Convertor Decoder

1 Piece of User's manual

CE and RoHS approved
