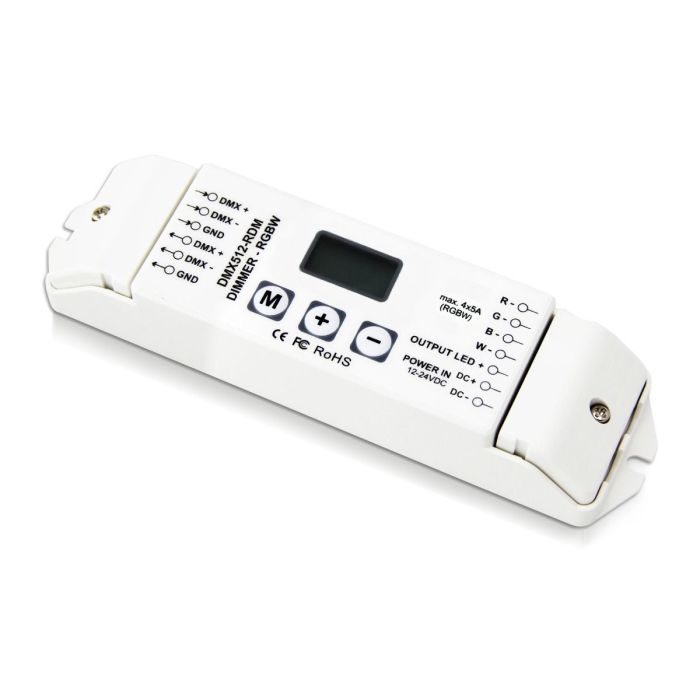

Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder controller

Be the first to review this product

$35.56

In stock

SKU

Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder

Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder controller is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant

voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard

RDM-DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 65536 gray scales,

workable for single color, color temperature, RGB and RGBW led lamp.

Feature function:

1. Easy operation with OLED screen and touch buttons.

2. 8bit (256 levels)/16bit (65536 levels) grey level optional.

3. With RDM remote management protocol, the operations can be completed via the RDM

master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

4. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.

5. Power-off data saved function.

6. Over current protection and short circuit protection.

Product parameter：

Model:BC-844

Input voltage:DC12V-24V

Max load current:5A×4CH, Max 20A

Max output power:240W(12V)/480W(24V)

Scale Levels:256 levels(8bit)/65536 levels(16bit)

Input signal:DMX512/RDM

Output Signal:Constant Voltage PWM×4CH

Output frequency:3K、6K、12K、24K selectable

DMX512 socket:Terminal block

Control mode:DIM /CT /RGB /RGBW 4 modes switch

Dimension:L176 X W46 X H30(mm)

Weight (G.W):140g

Package Content:

1 Piece of Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder controller

1 Piece of User's manual

CE and RoHS approved
