Bincolor Led Controller BC-422 DIP Switch Duplex Push Dim Button PWM Control

Be the first to review this product

$29.62

In stock

SKU

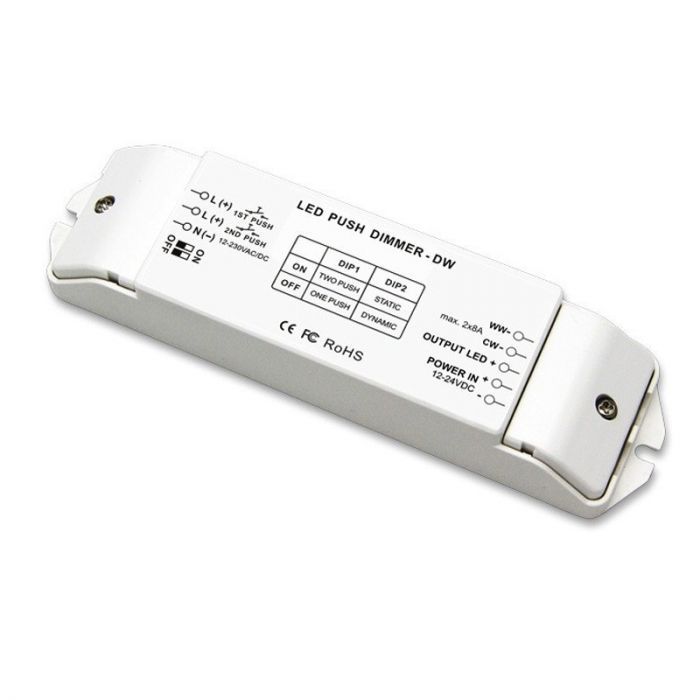

Bincolor Led Controller BC-422 DIP Switch Duplex Push Dim Button

Bincolor Led Controller BC-422 DIP Switch Duplex Push Dim Button PWM Control is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use this constant voltage CCT controller, it adopts PWM (Pulse-Width Modulation)

digital brightness control technology; it changes the dimming modes by DIP switch

and duplex push dim button, it's suitable for 2 channels' constant voltage CCT LED lights.

Basic Features:

Automatically adapts to DC12V-24V.

2 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker

One PUSH or two PUSHs selectable, Static mode and dynamic mode switchable.

Power loss memory function.

Over current protection, short circuit protection.

Specifications:

Input voltage: DC12V-24V

Max output current: 8A×2CH

Max output power: 96W×2CH W (12V) / 192W×2CH (24V)

Grey scale: 4096 levels × 2

Wroking temperature: -20-55℃

Product size: L176×W46×H30(mm)

Weight:145g

Package Content:

1 Piece of Bincolor Led Controller BC-422 DIP Switch Duplex Push Dim Button PWM Control

1 Piece of User's manual

CE and RoHS approved
