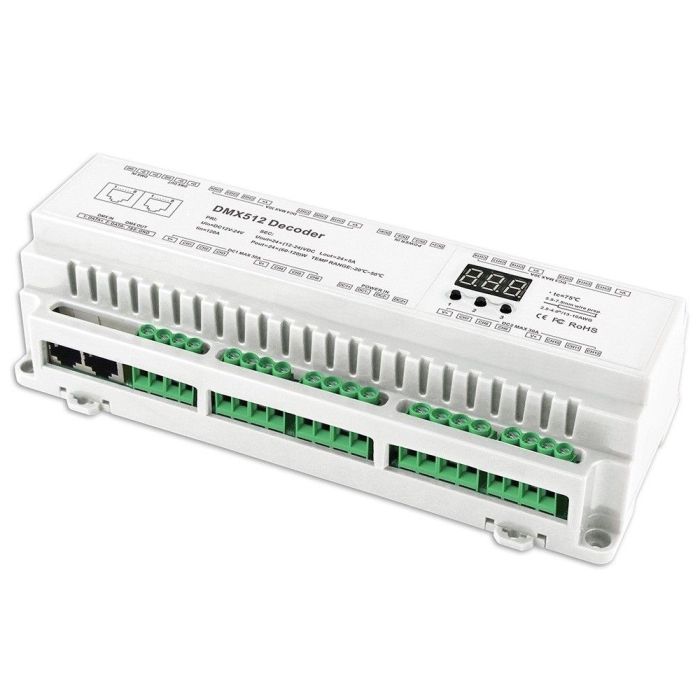

Bincolor Led Controller BC-632-DIN 32CH DMX512 12V-24V Decoder Driver
$96.15
In stock
SKU
Bincolor Led Controller BC-632-DIN 32CH DMX512 12V-24V
Bincolor Led Controller BC-632-DIN 32CH DMX512 12V-24V Decoder Driver is a high-performance, energy efficient and widely used LED product.
Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.
If you need further information or help, Pls email us at order@vipfactoryprice.com
Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is specially developed
for constant voltage LED lamps. It adopts advanced microcomputer control technology to convert
universal DMX512/1990 digital signal to PWM signal.32 output channels, can be used to control
constant voltage single color, color temperature, RGB type lamps. DIN Rail/screw dual-use installation method for easy installation.
Specifications:
Model: 32CH Constant Voltage decoder(BC-632-DIN)
Input voltage: DC12V-DC24V
Max load current: 3A×32CH
Max Output Power: 1152W (12V) / 2304W(24V)
Input Signal: DMX512/8 bit/16 bit selectable
Output Signal: Constant Voltage PWM × 32CH
Decode Channel: 32CH
DMX512 socket: RJ45、Terminal Block
Dimension: L218×W90×H58.5(mm)
Weight (G.W): 331g
Package Content: 1 Piece of Bincolor Led Controller BC-632-DIN 32CH DMX512 12V-24V Decoder Driver
1 Piece of User's manual
CE and RoHS approved
