DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol,
which adopts Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing
inquiries, and other powerful state lighting dimming function. Compared with the 0-10v analogue dimming,
it’s more precise dimming, addressable, stable, focus control, easy installation and so on. This product adopt
a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional
way of comparison, with adjustable light a wide range of diverse dimming, dimming of high precision, check the
current status LED (such as the current brightness, power intensity, the minimum support brightness, address, etc.),
easy distributed control and so on.
Working temperature: -20~60°C
Supply voltage: DC 12V~48V
Dimming signal : According to DALI standaed V0(IEC60929) signal
Output current: 350mA or 700mA constant current output, Pls Choose
Load: 350mA LED can be connected to 1-12 satellites; 700mA may take 1-11 stars
Dimming range: 0.1%-100%
External dimension: L103.64*W67.9*H29.7 mm.
Packing size: L145*W95*H50 mm
Gross weight: 95g
Net weight: 70g
Connection mode: Spring-free screw-type wring, terminal block 2.6mm diameter
Output power: 1-12W
IP Rating: IP20
Package Included:

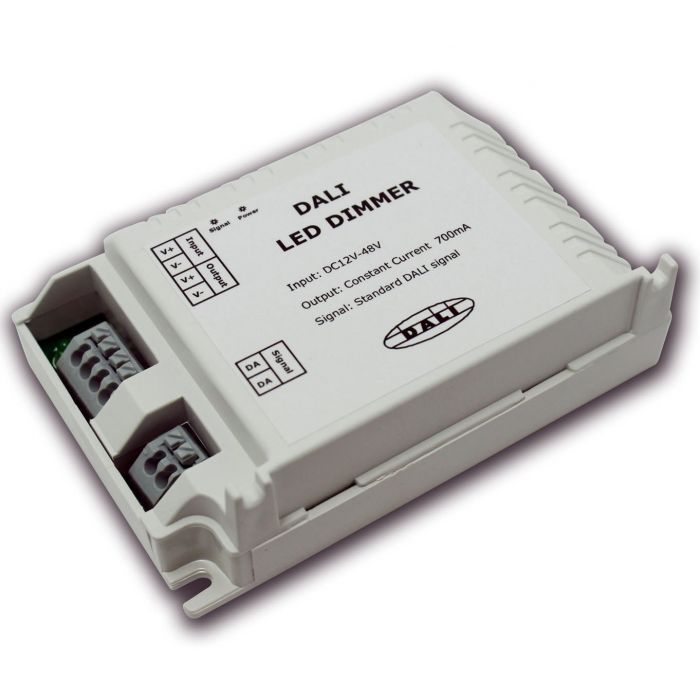

1 Piece of DALI LED Constant Current Dimmer
1 Piece of User's Manual
CE and RoHS approved
