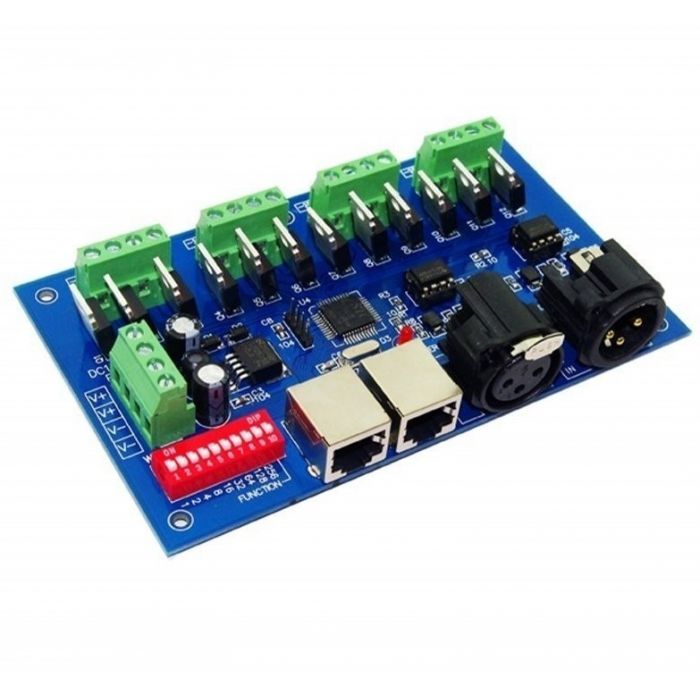

DMX512 Controller with Case Decoder 12 Channel 4 Group WS-DMX-12CH

$29.14
In stock
SKU
DMX512 Controller with Case Decoder 12 Channel 4 Group WS-DMX

DMX512 Controller with Case Decoder 12 Channel 4 Group WS-DMX-12CH is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1),

the value of bit can be gotten , on the contrary , the value of bit is 0

DMX signal can be received when coding switch FUN(10)=OFF

There are several switches is ON at the same time , the great value is standard.

Product description

LED DMX512 Controller,for LED Strip Module

Specification:

Input/Output Voltage: DC12V-24V

Total Output of current:24A

Output:2A each channel max 3A

Channel:12 channel 4 group

Controller:DMX512 XRL 3P RJ45

Dimension:140x84x25mm

Weight:0.2Kg

Product Model:

Package Included:

1 Piece of DMX512 Controller with Case Decoder 12Channel 4Group For LED DC12V-24V WS-DMX-12CH

CE and RoHS approved
