Features:

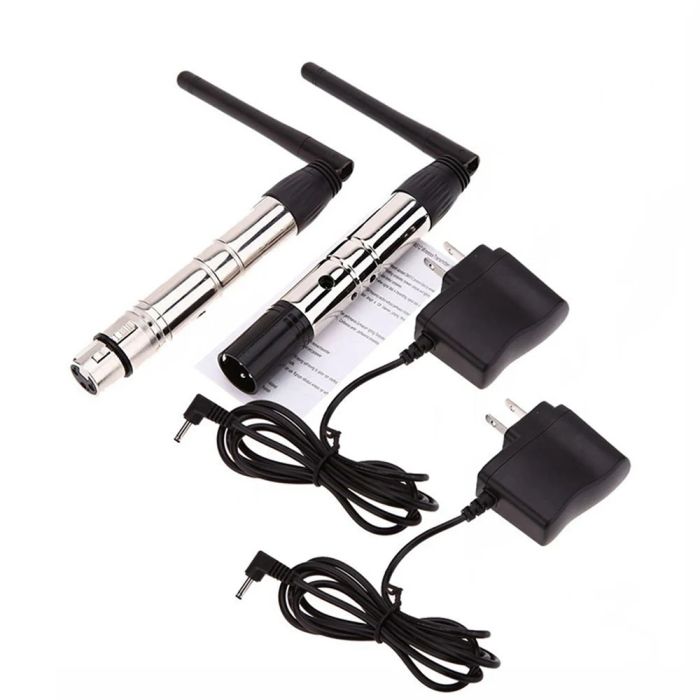

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by
console) by wireless way.No time delay when signal data is transmitting, signal data is
real time
and rel iably.This product adopts a 2.4G ISM frequency section.High effective GFSK
modulate,communication design; 126 channels jumping frequency automatical ly, high anti-
jamming abi l ity.
Receiver Product parameter:
2.4G wireless DMX512 R/T
126 channels jumping frequency automatical ly, high anti-jamming abi l ity. to ensure works
rel iabi l ity
7 groups ID code settable,User can use 7 groups individual wireless net without any interfere
each other in the same place...(Tricolor LED displaying Indicators)
Input voltage:5VDC 500mA MIN
Communication distance: 300M (visible distance)
Work frequency section: 2.4G ISM,126 channels.frequency section
Max transmitting power rate:20dBm
Net weight:180g
Warranty : 2years
Establishing Communication:
Power on DMX512 wireless received board first and then following to power up the transmitted board.
Press “Key” button to set same ID value of transmitted board and received board. Please use different
ID value if you need use more than 1 group wireless universals at same time in same place.
The red LED flashes when transmitter transmits DMX data by no interfered frequency section,
then receiver changes communicated frequency section. Green LED flashes until received same ID value,
the more DMX data, the faster the LED flashes.
Communication was established correctly.
Package include:
As You Choose
Certificate:CE & ROHS & UL & SAA
Plug: to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
Use of premises: Stages, night clubs, Disco, Hotels, shops, family birthday party, Good for DJ
For customs:We declare it LED Lighting with lower price to help you pay less tax default
CE and RoHS approved
