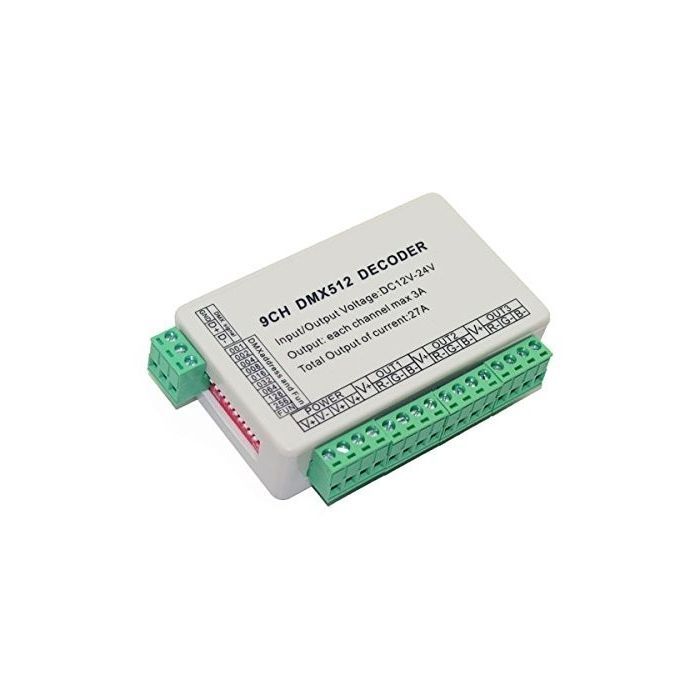

Easy Dmx512 Controller with Case Decoder 9Channel 3Group 27A WS-DMX-9CH

Be the first to review this product

$21.36

In stock

SKU

Easy Dmx512 Controller with Case Decoder 9Channel 3Group 27A

Easy Dmx512 Controller with Case Decoder 9Channel 3Group 27A WS-DMX-9CH is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Each DMX common controller occupied 9 DMX addresses, adopt coding switch set address.

It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest,

and 9 is the highest, 511 address codes could be setted in all.

DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1),

the value of bit can be gotten , on the contrary , the value of bit is 0.

DMX signal can be received when coding switch FUN(10)=OFF.

There are several switches is ON at the same time , the great value is standard

Product description

LED DMX512 Controller,for LED Strip Module

Specification:

Input/Output Voltage: DC12V-24V

Total Output of current:27A

Output:3A each channel

Channel:9 channel 3 group

Controller:DMX512 3P

Dimension:110x70x28mm

Weight:0.19Kg

Product Model: WS-DMX-9CH

Package Included:

1 Piece of Easy Dmx512 Controller with Case Decoder 9Channel 3Group 27A WS-DMX-9CH

CE and RoHS approved
