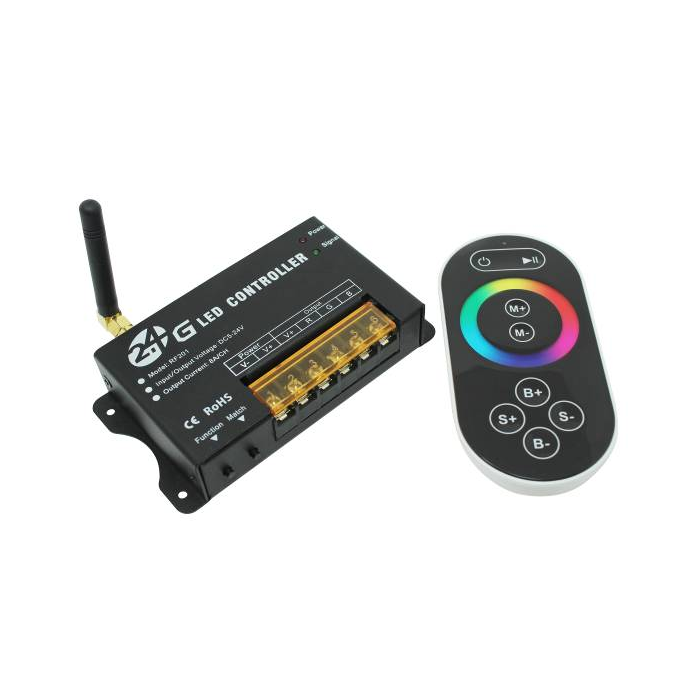

2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with touch remote
control, touch remote control adopts high precision capacitance touch control technology, you can select the color
you need by one button. It is convenient and easy. Each controller has a globally unique address code, in order to
prevent confusion caused by controlling repeated address code. Each controller can be equipped with four remote
controls, can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose
source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It
has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,
it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Technical Parameters
Controller
Working temperature: -20-60℃
Supply voltage: DC5V-24V
Output: 3 channels
Connection mode: common anode
External dimension: L120ΧW62ΧH27mm
Packing size: L185ΧW145ΧH52 mm
Net weight: 226g
Gross weight: 320g
Static power consumption: <1W
Output current: <8A (each channel)
Output power: 12V:<288W, 24V:<576W
Touch Remote Control
Working temperature: -20-60℃
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 2.4Ghz
Standby power consumption: 0.015mW
Standby current: 60uA
Working current: 200uA
Wmission current: 10mA
Remote distance: about 30m
Standby time: 6 months
Remote control weight: 94g
