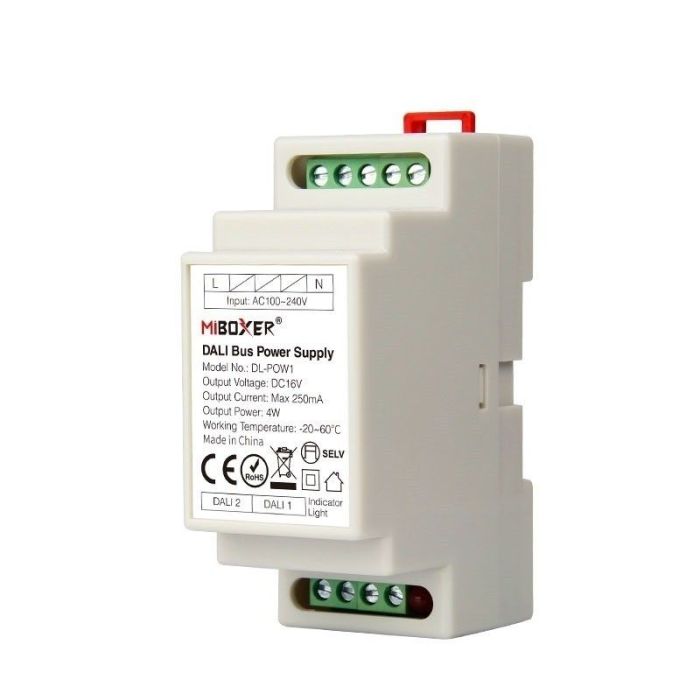

Mi.Light DL-POW1 DC16V 4W DALI Bus Power Supply DIN Rail Miboxer Max 250mA Transformer

$19.71
In stock
SKU
Mi.Light DL-POW1 DC16V 4W DALI Bus Power Supply DIN Rail Miboxer
  • Buy 12 for $18.61 each and save 6%

Mi.Light DL-POW1 DC16V 4W DALI Bus Power Supply DIN Rail Miboxer Max 250mA Transformer is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

Product Parameters

Product Name: DALI Bus Power Supply (DIN Rail)

Model No.: DL-POW1

Input Voltage: AC100-240V   50/60Hz

Input Current: 115Vac/≤0.09A, 230Vac/≤0.05A

Leakage Current: <0.5mA/230Vac

Inrush Current: Cold start 10A at 230Vac

Setup Time: 115Vac<2500ms, 230Vac<1000ms (at full load)

Output Voltage: DC16V

Output Current: 250mA Max

Max. Reted power: 4W

Ripple & Noise: 0.2Vp-p (at full load)

Working Temp.: -20-60℃

Working Humidity: 20 ~ 95%RH, non-condensing

Safety & EMC

Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH

Package Included:

1 Piece of Mi.Light DL-POW1 DALI Bus Power Supply DIN Rail

 Transformer

Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_1
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_2
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_3
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_4
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_5
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_6
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_7

CE and RoHS approved
