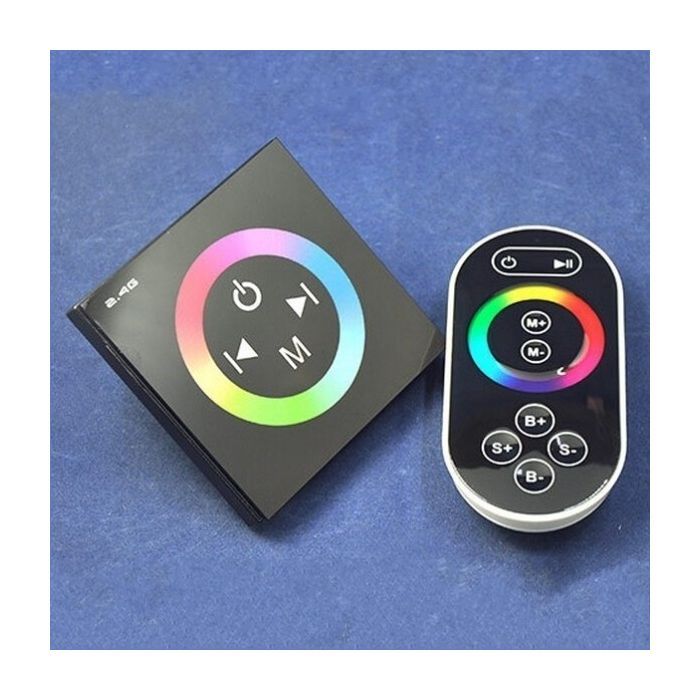

DMX Touch panel decoder with 2.4G remote is a new high-end led controller which is newly researched and developed by our company.
It adopts glass panel design, beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases
the touch sensitivity, reduces trigger which caused by mistake. The controller has 2.4G remote and DMX signal control interface, furthermore,
it has colorful built-in mode option and color wheel, it is a functional and high-end touch controller. It is used for controlling a variety of lamp
whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages
such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,
stroboflash and other effects of change.
Technical Parameters
Controller
Working temperature: -20-60 degree
Power supply voltage: DC 12~24V
Output: 3 channel
Connect way: common anode
External dimension: L86ΧW86ΧH41.8mm
Gross weight: 291g
Static power consumption: <1W
Output current: < 4A(each channel)
Output power: 12V:< 144W, 24V:< 288W
Remote control
Working temperature: -20-60 degree
Power supply mode: AAA*3 (battery is not included)
Power supply voltage: 1.5V*3
Transmitting frequency: 2.4Ghz
Standby power consumption: 0.015mW
Standby current: 60uA
Working current: 200uA
Transmitting current: 10mA
Remote distance: about 30 meters
Standby time: six month
Weight: 94g
Package Included:
1 Piece of RGB 3 Channels DMX Touch Panel Decoder with 2.4G Remote Control
1 Piece of User's Manual
CE and RoHS approved
