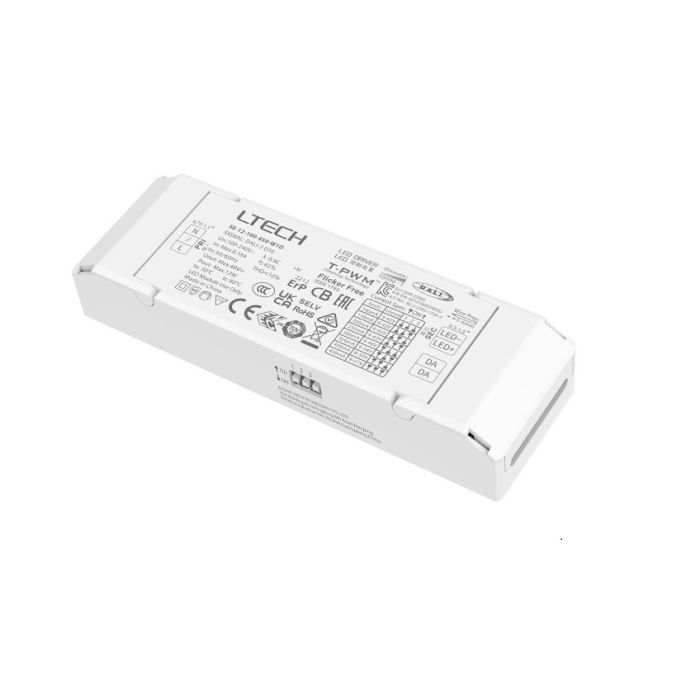

SE-12-100-450-W1D Constant Current DALI-2 DT6 LED Driver Ltech Controller

$17.12
In stock
SKU
SE-12-100-450-W1D Constant Current DALI-2 DT6 LED
  • Buy 50 for $16.44 each and save 4%

For more LTECH DALI Controller Driver, pls check here: https://www.vipfactoryprice.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

SE-12-100-450-W1D Constant Current DALI-2 DT6 LED Driver Ltech Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight. The clamshell design and screwless type for strain-relief.

The clamshell design and screwless type for strain-relief.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Multiple current levels and wide voltage range.

Suitable for different power of LEDs.

Comply with no-load power consumption of the EU’s ErP Directive, standby power consumption < 0.5W.

With soft-on and fade-in dimming function, enhancing your visual comfort.

T-PWMTMdimming technology allows continuous and flicker-freeimages under high-speed photography.

The whole dimming process is flicker-free with high frequency exemption level. Dimming from 0~100%, down to 0.1%.

DALI bus standard IEC62386-101, 102, 207.

DALI dimming curves are available in linear and logarithmic curve.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently protects the life of the LED driver.

Overheat, over voltage , overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Up to 50,000-hour life time.

5-year warranty (Rubycon capacitor).

Rubycon capacitor

Dimming Interface:    DALI DT6

Input Voltage:    100-240Vac

Power Factor:     PF>0.9C/230Vac , at full load PF>0.95C/115Vac , at full load

Efficiency:    >82%@450mA

Fluctuation Level:    No visible flicker/High frequency exemption level

Output Voltage:    9-42Vdc

Output Current:    100-450mA

Output Power:    0.9W-12W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CB,RCM,CE,KC,UKCA,BIS,EAC,ENEC,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)         Vout(DC)         Constant(DC)
0.9-4.2W              9-42V              100mA
1.35-6.3W            9-42V              150mA
1.8-8.4W              9-42V               200mA
2.25-10.5W         9-42V                250mA
2.7-12W               9-40V               300mA
3.15-11.9W          9-34V              350mA
3.6-12W               9-30V               400mA
4.05-12.15W        9-27V               450mA

Package Included:

1 Piece of Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
